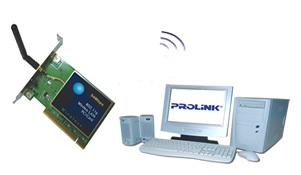

WG3000/R
802.11b/g PCI adapter
More Information
»
Driver
»
Manual
»
QIG
»
FAQ
Features
Compliant with IEEE 802.11b/g standard
2.4GHz Wireless LAN
Compliant with PCI Standard
Works with all existing network
infrastructure
Compatible with specific wireless products and services
Capable of up to 128-Bit WEP Encryption
Protocol
Freedom to roam while staying connected
54 Mbps High-Speed Transfer Rate
Rich diagnostic LED indicators
Lower power consumption
Easy to install and configure
Specifications
Standard
:IEEE 802.11b/g, Wi-Fi compliant
Host Interface:
PCI 2.2
Antenna:
Dipole Antenna
LED Indicators:
LINK: Green (ON) ACT: Green (Blink)
Frequency Range:
2.412GHz-2.4835GHz
Number of Selectable
Channels:
USA, Canada: 11 channels
Europe: 13 channels
Japan: 14 channels
Data rate:
up to 54Mbps
Modulation Technique:
Direct Sequence Spread Spectrum (CCK, DQPSK, DBPSK)
Security:
0/64/128 bit WEP
Bit Error rate:
Better than 10 -5
Media Access Protocol:
CSMA/CA (Collision Avoidance) with ACK
Power Requirement:
Operating Voltage: 5V
TX consumption: 430mA (Max)
RX consumption: 300mA (Max)
Sleep Mode: 25mA
Physical Specifications
Weight: 50g
Dimension:
119.9 (L) x 46.7(W) mm
Supported OS:
Windows 98
Windows ME
Windows 2000
Windows XP
EMC Certification
FCC Part 15 in US & EN300328 and EN300826 (EN301489-17) in Europe
